5 Pack 2-Bolt Foothold Playground Climbing Holds Contractor Grade

$108.84

Playground rock climbing holds that meet ASTM and CSA standards.

Wall Type * Wall Type determines the required bolt length needed to pass through the hold and the climbing wall. If you are not purchasing hardware, this option doesn't matter.
Hardware *
Single Hold Colors * SEE COLOR CHART

Overview

Are you an architect who is considering specifying Atomik for your project? If so, I can assist you in selecting the most appropriate product. With my extensive knowledge of every Atomik product and its installation process, we can have a conversation to make your cut sheets concise and easy to understand. My goal is to make your job easier by providing expert advice and unbiased options to help you achieve your desired outcome. Please don't hesitate to contact me for any assistance you require.

Ken Matys

President

801-404-0280 Office

385-539-1181 Cell

Kenny@atomikclimbingholds.com

To view this product and other products that match this set, click Contractor Grade.

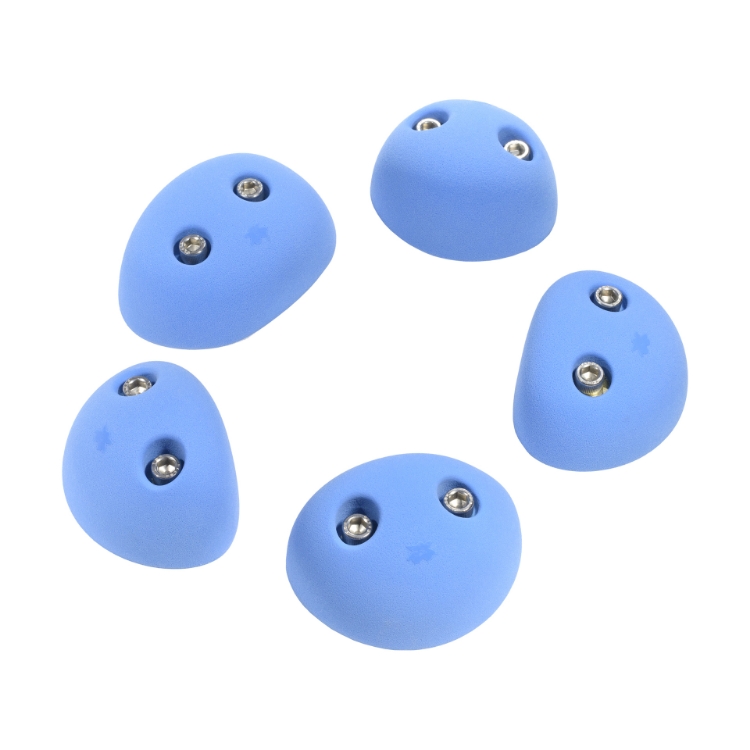

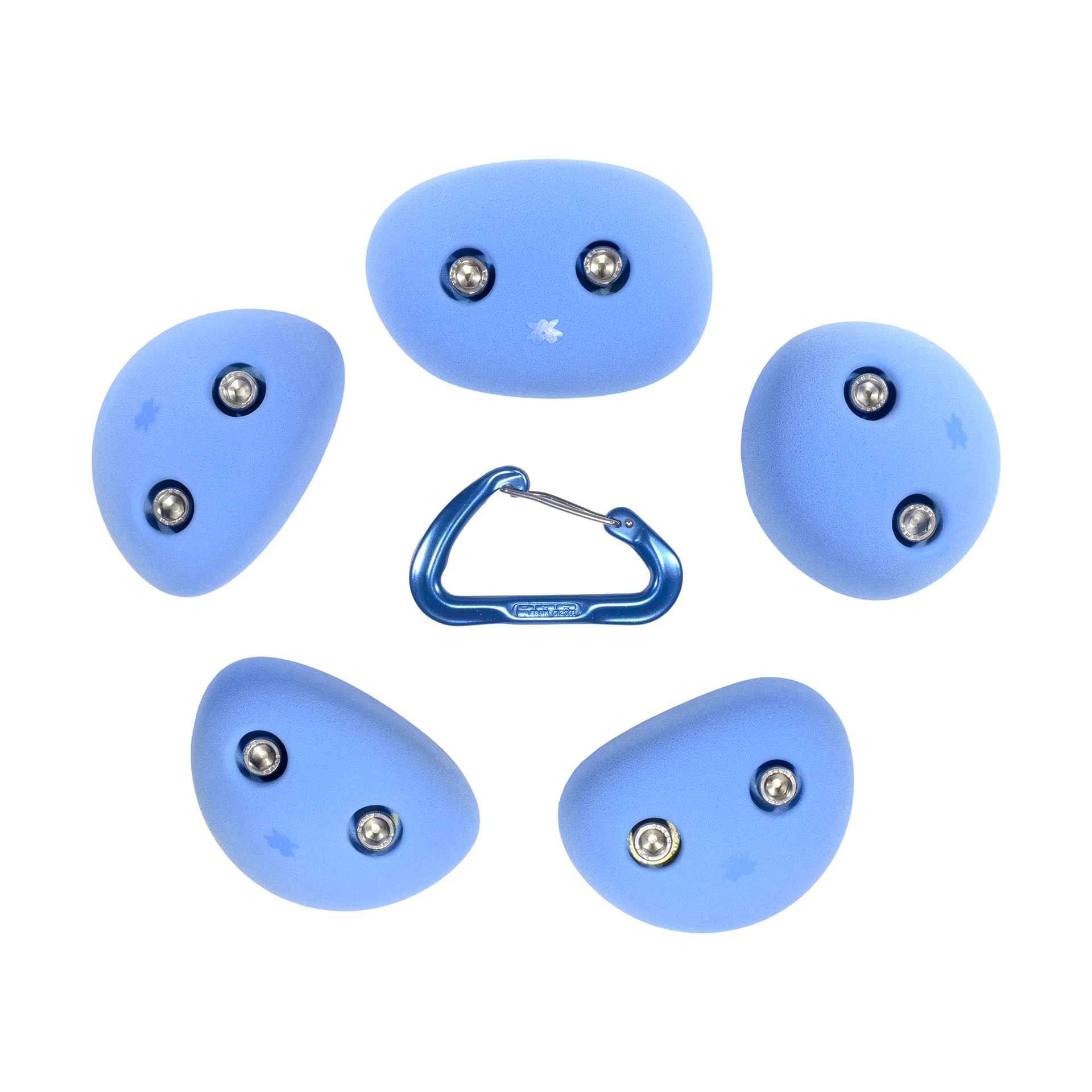

This is a set of five different shapes of footholds. The holds have the same tooling as the 10 Pack 2 Bolt.

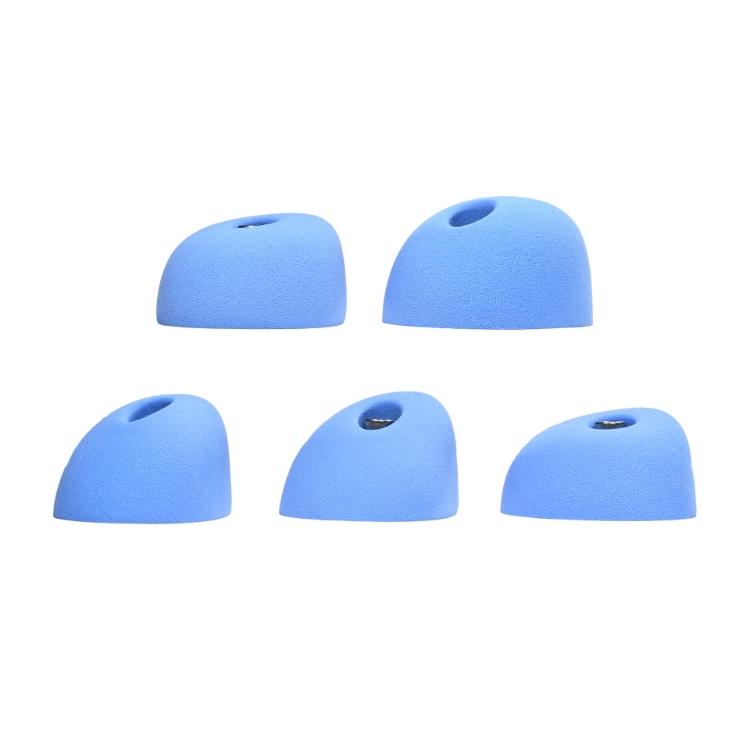

The holds measure, on average, 4" wide x 3" tall x 2-1/2" standing off the wall, which is big enough even for bare feet.

!Attention Architects! The ideal thickness of soft play rubber is 2" and 3" thick. In between these, thicknesses create headaches for the length of the bolts needed. Thicker also makes more issues. Atomik recommends no thicker than a 3" soft play surface when attaching climbing holds on top of it and to the concrete underneath.

We recommend you purchase the Resin 10 Pack 2 Bolt Spacer for the easiest installation relating to poured-in-place rubber.

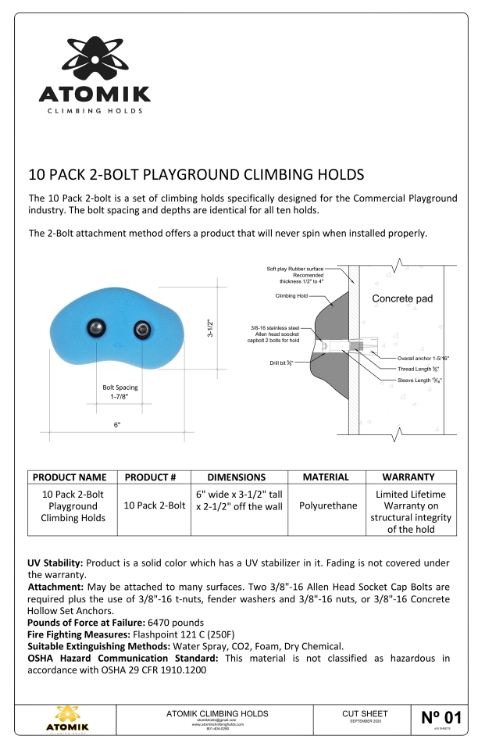

CUT SHEET 2 BOLT
CONCRETE ANCHOR SPEC SHEET

There are several ways to install the product on top of Poured-in-Place Rubber. We have listed these below. Using a sold separate resin spacer is the easiest first method. Click HERE for the Resin Spacer product spacer and a video of the installation process.

Using the Resin Spacer

This resin spacer is meant to be covered by 1/2" of Poured-in-Place/Soft Play Rubber.

This Spacer only works for the 10-pack 2 Bolt product. Its intended use can be viewed in the video below. If you need help ordering this product, call our office at 801-404-0280. We encourage you to contact us as the people who answer our phones have personal experience with hundreds of install applications of this product. You can purchase the Resin Spacer HERE.

HOW TO INSTALL ON A SOFT PLAY/RUBBER SURFACE BEFORE RUBBER HAS BEEN INSTALLED

To install on to a Soft Play/Rubber surface requires some planning. Below are the details. For pictures of the hardware to use and how it will look, please look at our thumbnail images found within this product's listing.

Here is the process.

1. Pour your concrete slab/mound.

2. Drill and set all the concrete anchors. Use the actual climbing hold as your Spacer. Every hold in this set has the same bolt dimensions, so you can use one grip to do that. We recommend a spacing of 18" apart in a staggered pattern.

3. Now slide the bolt through a metal sleeve(measures 1/2" OD steel tubing .035 - .040 wall thickness, ID 13/32"/.40625), and hand thread the bolt into the anchor.

4. Spray everything with a mold release that will discourage the rubber from adhering to the metal.

5. Now install your Soft Play rubber surface.

6. Once Soft Play is cured, remove the bolt AND metal sleeve.

7. Now, take the bolt, pass it through the climbing hold, and hand thread it into each anchor.

8. Tighten down the bolts for the final operation.

INSTALLING CLIMBING HOLDS AFTER RUBBER HAS BEEN INSTALLED

1. Your contractor installed the soft play rubber down with no anchors in the concrete slab.

2. Take one hold from the 10-pack 2 Bolt and drill a 3/8" hole down both holes. We use a standard drill bit. It would be best if you drilled all the way down to the concrete slab without touching the concrete. This avoids wearing out the tip of your bit.

3. Now that you have your 3/8" holes in the rubber, take a 3/8" concrete bit and drill a hole deep enough so that the Simpson Titen HD Heavy Duty Screw Anchor embeds a minimum of 2-1/2". Tapcon also has a 3/8" concrete anchor that is very similar to the Simpson.

4. Now, take a THIN WALLED 9/16" Nut driver and send the screws home.

5. LENGTH OF SCREW NOTE: If you intend this method of installation from the beginning, the thinner the soft play rubber is, the easier the installation. To determine the length of the screw you need, use the measurement of the thickness of the rubber plus 4" for Tapcons and 3" for concrete hollow set anchors. So, if you have 3" soft play rubber, you need two 7" Tapcon Anchors per hold. Or, if you have 3" of soft play rubber, you would need two 5" Allen Head Socket Cap bolts and two concrete hollow set anchors.

HOW TO CHOOSE THE CORRECT LENGTH OF BOLT FOR THIS PRODUCT TO INSTALL THROUGH SOFT PLAY RUBBER

WHEN PRE-PLACING CONCRETE ANCHORS

The hold needs 1-1/4" of the bolt to meet the hold's back, plus the thickness of your Soft Play Rubber, plus 1-1/2" embedment depth for the concrete hollow set anchor.

Example

You have 3" of Soft Play Rubber
1-1/4"(Hold) + 3"(Rubber) + 1-1/2"(Embedment) = 5-3/4"
Bolts only come in half sizes, so in this case, you need a 6" bolt.

WHEN INSTALLING HOLDS ON TOP OF RUBBER THAT IS ALREADY IN PLACE AND NO ANCHORS WERE PRE-PLACED

Example

You have 3" of Soft Play Rubber
1-1/4"(Hold) + 3"(Rubber) + 2-1/2"(Embedment) = 6-3/4"
Bolts only come in half sizes, so in this case, you need a 7" Tapcon Anchor bolt.

This set has been CNC-designed to meet the standards of the commercial playground Industry. Each hold uses the same length bolt, and the spacing pattern on every hold is the same for every hold. Look no further; this is our premium set to meet commercial standards.

Measures, on average, 6" wide x 4" tall x 2-1/2" off the wall.
The washer measurement embedded into the hold to the back of the hold is 1-1/4".
2-bolt attachment ensures the hold will never spin.
It is sold as a ten-pack.
Organic shapes for a variety.
Foot and hand comfort.
An excellent choice for commercial playgrounds.
Structural Lifetime Warranty.
Meets all ASTM and CSA standards.
For attaching to Soft Play/Rubber surface, the steel tubing that would be required, which is not included, measures:1/2" OD steel tubing .035-.040 wall thickness, ID 13/32"/.40625.
The length of the steel tubing required is 1-1/2" longer than the thickness of the rubber. For Example, If the rubber surface is 3" thick, then the steel tubing needs to be 4-1/2" long.
