Top Rope Chain "V" Anchor

Overview

Two steel carabiners placed in opposition eliminate the possibility of a rope escaping. The belay anchor design equalizes the load between two attachment points. TECHNICAL INSTRUCTIONS

Chain "V" Anchor Component Parts:

• Plated Steel Bolt Hanger:
  • 5600lbs / 25kn breaking strength
  • CE/UIAA Certified Life Safety
  • 4mm Stock
  • Zinc Plated
  • 2 Carabiner Capacity
• Grade 30 Proof Coil Chain:
  • Zinc-plated Steel
  • Working Load Limit of 2650 lbs.
• 3/8" Zinc Plated Steel Quick Link:
  • Working Load Limit: 2300 lbs.
  • Inside Length: 2-7/16"
  • Inside Width: 3/4"
  • Pin Diameter: 3/8"
  • Pin Opening: 1/2"
  • Overall Length: 3-1/2"
  • Product Weight: .306 lbs each

Choice of Carabiners:

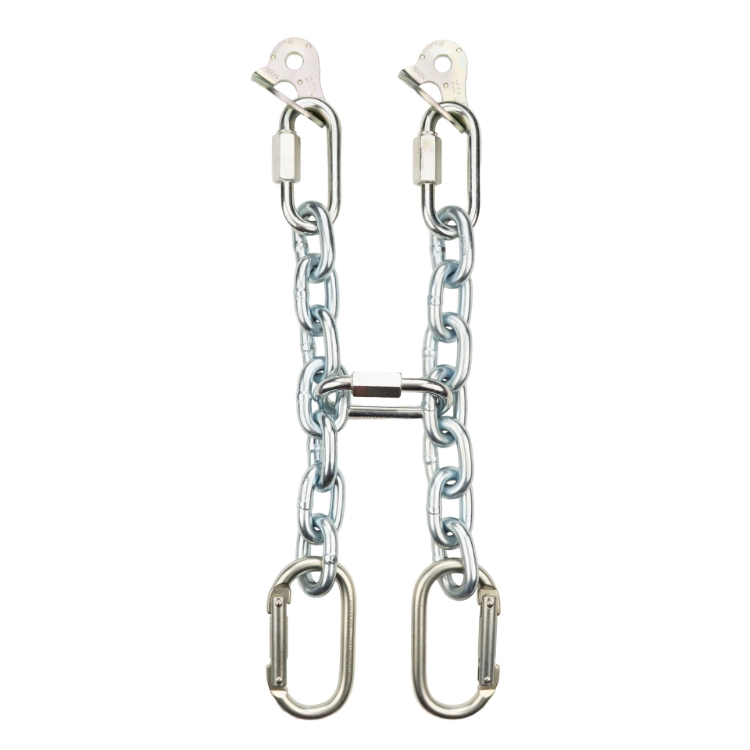

• Steel Non-locking Oval Carabiner:
  • Clear zinc-plated steel, non-locking carabiner with steel gate.
  • Color may vary.
  • Rated at 24kN / 5395 pounds with a closed gate on the long axis.

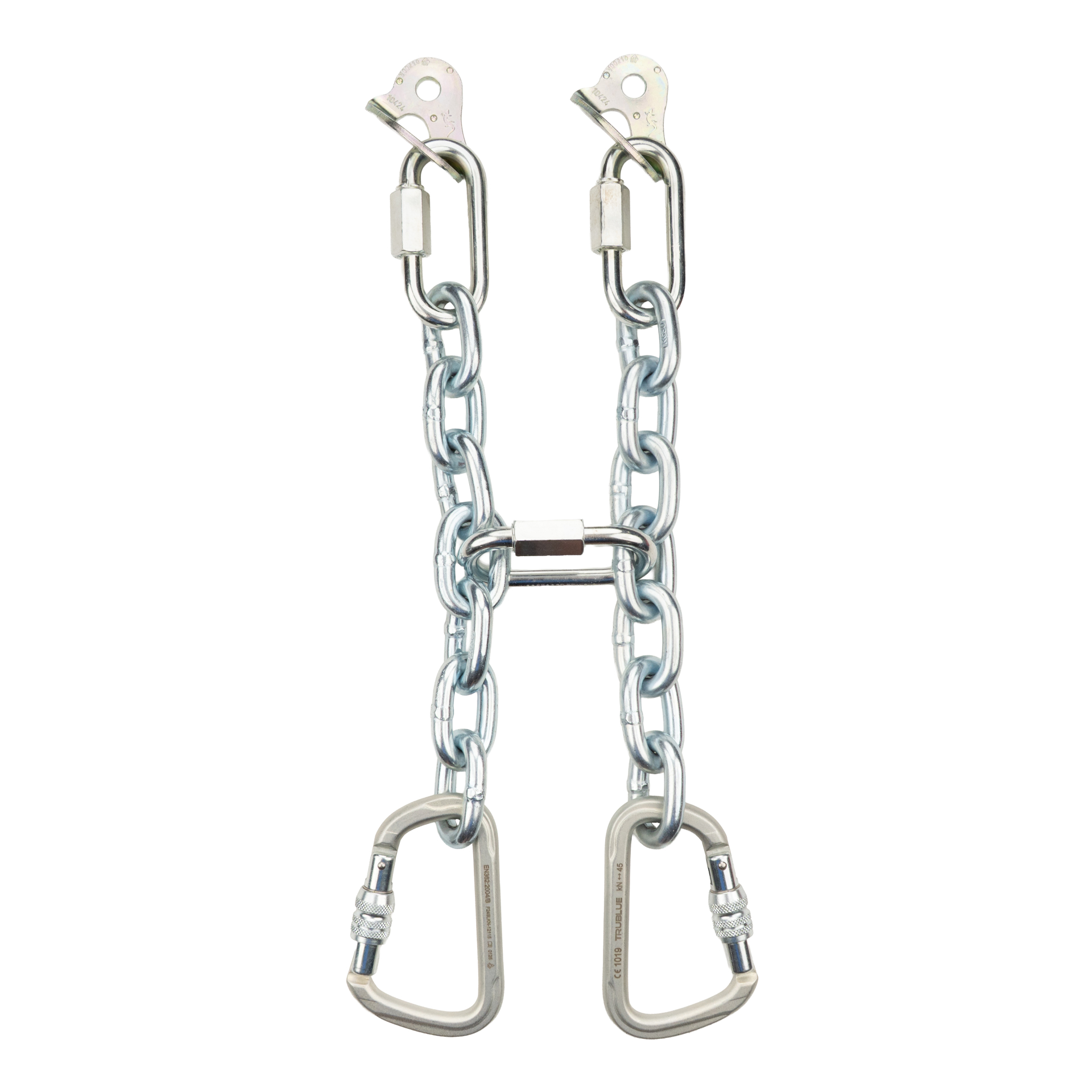

• Steel Locking Carabiner:
  • Clear zinc-plated steel
  • Twist gate, locking, oval "D" carabiner with spring hook.
  • Closed Gate Strength: 50kN
